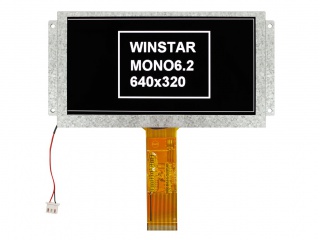

| Onderdeel nummer | WF62ATXGRDNN0 |
| Merk | Winstar |
| Maat | 6.2 |
| Sollicitatie | Industrial |
| Oplossing | 640×320 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleuren | Grayscale |
| Tegenlicht | WLED |
| Koppel | 8-bit |
| fabrikant | Winstar |
| modelnaam | WF62ATXGRDNN0 |
| scherm grootte | 6.2 inch |
| scherm type | LCM , a-Si TFT-LCD |
| pixel nummer | 640×320 116PPI |
| regeling | Rectangle |
| actief gebied (mm) | 140 × 70 (H×V) |
| overzicht (mm) | 170.32 × 83.3 × 5.6 (H×V×D) |
| bezel gebied (mm) | 141.6 × 73.4 (H×V) |
| behandeling | Glare (Haze 0%) |
| luminantie | 600 cd/m² (Typ.) |
| contrast ratio | 800 : 1 (Typ.) (TM) |
| kijk hoek | - |
| antwoord | - |
| goed zicht op | Symmetry |
| werk modus | VA, Normally Black, Transmissive |
| kleuren diepte | Grayscale |
| tegenlicht | WLED , No Driver |
| massa | - |
| gebruikt voor | Industrial |
| vernieuwingsfrequentie | - |
| touch screen | Without |
| signaal type | 8-bit 6800/8080 parallel, 3/4-wire SPI , 22 pins FPC |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AT062TN12 | Innolux | 6.2 | |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| HSD062IDW1-A00 | HannStar | 6.2 | 800×480 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
