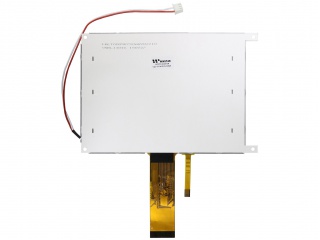

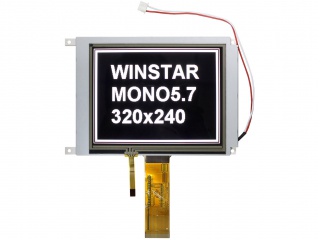

| Onderdeel nummer | WF57STIACDNT0 |
| Merk | Winstar |
| Maat | 5.7 |
| Sollicitatie | Industrial |
| Oplossing | 320×240 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleuren | Grayscale |
| Tegenlicht | WLED |
| Koppel | 8/16-bit |
| fabrikant | Winstar |
| modelnaam | WF57STIACDNT0 |
| scherm grootte | 5.7 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 320×240 (QVGA) 70PPI |
| regeling | Rectangle |
| actief gebied (mm) | 115.2 × 86.4 (H×V) |
| overzicht (mm) | 160 × 109 × 9 (H×V×D) |
| bezel gebied (mm) | 118.2 × 87.4 (H×V) |
| behandeling | Antiglare |
| luminantie | 700 cd/m² (Typ.) |
| contrast ratio | 800 : 1 (Typ.) (TM) |
| kijk hoek | - |
| antwoord | - |
| goed zicht op | 12 o'clock |
| werk modus | TN, Normally White, Transmissive |
| kleuren diepte | Grayscale |
| tegenlicht | WLED , No Driver |
| massa | - |
| gebruikt voor | Industrial |
| vernieuwingsfrequentie | - |
| touch screen | 4-wire Resistive Touch |
| signaal type | 8/16-bit 6800/8080 parallel, 3/4-wire SPI , FPC 22 pins |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AA057VF12 | Mitsubishi | 5.7 | 640×480 |
| AM-640480G2TNQW-00H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480GFTNQW-T01H-L | AMPIRE | 5.7 | 640×480 |
| C555001 | SII | 5.7 | 320×240 |
| CLAA057VC01CT | CPT | 5.7 | 640×480 |
| EL320.240.36 | Lumineq | 5.7 | 320×240 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| SP14Q002-A1 | KOE | 5.7 | 320×240 |
| TM057KDH02 | Tianma | 5.7 | 320×240 |
