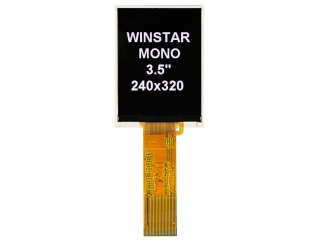

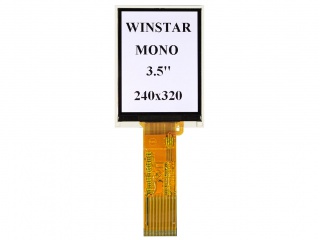

| Onderdeel nummer | WF35NTVAJDNN0 |
| Merk | Winstar |
| Maat | 3.5 |
| Sollicitatie | Industrial Automotiv |
| Oplossing | 240×320 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 900:1 |
| Kleuren | Grayscale |
| Tegenlicht | WLED |
| Koppel | |
| merk | Winstar |
| diagonale maat | 3.5 inch |
| pixel formaat | 240×320 [QVGA] 114PPI |
| actief gebied | 53.28(H)×71.04(V) mm |
| bezel gebied | 56.16(H)×73.04(V) mm |
| luminantie | 500 cd/m² (Typ.) |
| richting bekijken | Symmetry |
| kijk hoek | - |
| ondersteunende kleur | Grayscale |
| gewicht | - |
| frame rate | - |
| model | WF35NTVAJDNN0 |
| type | a-Si TFT-LCD , LCM |
| configuratie | Rectangle |
| omtrek afm. | 62.9(H)×86.5(V) ×4.1(D) mm |
| behandeling | Glare (Haze 0%) |
| contrast ratio | 900:1 (Typ.) (TM) |
| reactietijd | - |
| bedrijfsmodus | VA, Normally Black, Transmissive |
| lichtbron | WLED , W/O Driver |
| ontworpen voor | Industrial Automotive Display |
| aanraakpaneel | Without |
| 35HVE1H | SII | 3.5 | 320×480 |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| H347QN02 V0 | AUO | 3.5 | 320×480 |
| LMS350GF08 | Samsung | 3.5 | 320×240 |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LTJ035L001A | TPO | 3.5 | 640×360 |
| T-51963GD035J-MLW-AJN | Kyocera | 3.5 | 240×320 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
