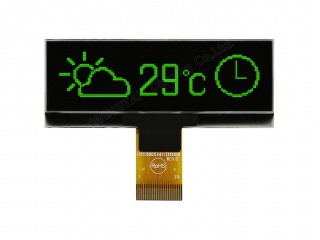

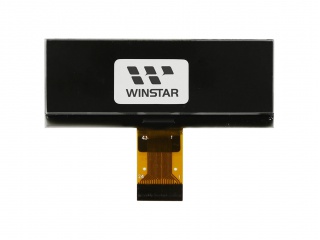

| Onderdeel nummer | WEO012832AG |
| Merk | Winstar |
| Maat | 2.2 |
| Sollicitatie | Handheld & PDA Instr |
| Oplossing | 128×32 |
| Samenstelling | PM-OLED , OLED |
| Helderheid | |
| CR | |
| Kleuren | Mono(Green) |
| Tegenlicht | self |
| Koppel | 8-bit |
| merk | Winstar |
| diagonale maat | 2.2 inch |
| pixel formaat | 128×32 59PPI |
| actief gebied | 55.018(H)×13.098(V) mm |
| bezel gebied | 57.02(H)×15.1(V) mm |
| richting bekijken | Symmetry |
| kijk hoek | - |
| ondersteunende kleur | Mono(Green) |
| gewicht | - |
| frame rate | - |
| d-ic detail | COG Built-in SSD1305Z |
| interface-type | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 24 pins FPC |
| stroomvoorziening | 3.0V (Typ.) |
| model | WEO012832AG |
| type | PM-OLED , OLED |
| configuratie | Rectangle |
| omtrek afm. | 62(H)×24(V) ×2.35(D) mm |
| behandeling | - |
| reactietijd | - |
| bedrijfsmodus | - |
| lichtbron | self |
| ontworpen voor | Handheld & PDA Instruments & Meters |
| aanraakpaneel | Without |
