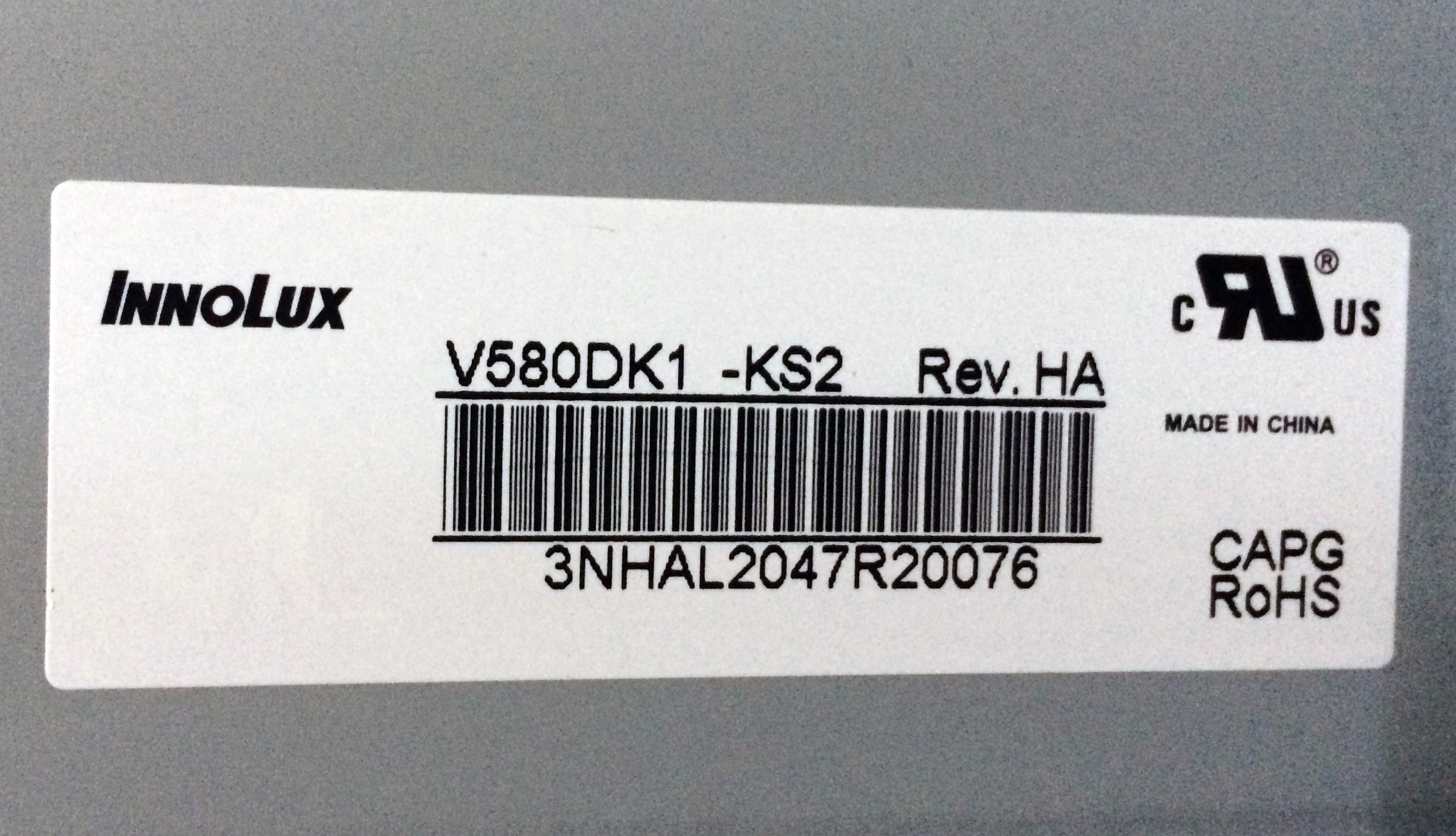

| Onderdeel nummer | V580DK1-KS2 Rev.HA |
| Merk | Innolux |
| Maat | 58 |
| Sollicitatie | TV Sets |
| Oplossing | 3840×2160 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 3000:1 |
| Kleuren | 1.07B |
| Tegenlicht | WLED |
| Koppel | |
| fabrikant | Innolux |
| scherm grootte | 58 inch |
| pixel nummer | 3840(RGB)×2160 (UHD) 76PPI |
| actief gebied (mm) | 1270.08 × 721.44 (H×V) |
| bezel gebied (mm) | 1275.3 × 726.7 (H×V) |
| luminantie | 360 (Typ.)(cd/m²) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| kleuren diepte | 1.07B 98% DCI-P3 |
| massa | 19.1±0.1Kgs |
| vernieuwingsfrequentie | 120Hz |
| modelnaam | V580DK1-KS2 Rev.HA |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 1290.3 × 744.7 × 28.6 (H×V×D) |
| behandeling | Glare (Haze 0%), Hard coating (3H) |
| contrast ratio | 3000 : 1 (Typ.) (TM) |
| werk modus | Super MVA, Normally Black, Transmissive |
| antwoord | 6.5 (Typ.)(G to G) ms |
| tegenlicht | WLED , 30K hours , With LED Driver |
| gebruikt voor | TV Sets |
| touch screen | Without |
| LK580Z3LA13 | SHARP | 58 | 2560×1080 |
| T576DC01 V0 | AUO | 58 | 2560×1080 |
| V580DK1-KS2 | Innolux | 58 | 3840×2160 |
| V580DK1-LS1 | Innolux | 58 | 3840×2160 |
| V580DK2-KS1 | Innolux | 58 | 3840×2160 |
| V580DK2-KS1 Rev.C8 | Innolux | 58 | 3840×2160 |
| V580DK2-LD1 | Innolux | 58 | 3840×2160 |
| V580HJ1-LD6 | Innolux | 58 | 1920×1080 |
| V580HJ1-LE6 | Innolux | 58 | 1920×1080 |
| V580HK1-LE6 | Innolux | 58 | 1920×1080 |
