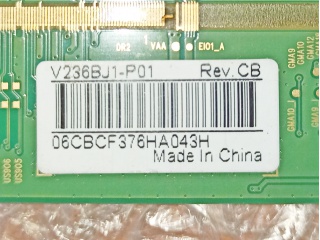

| Onderdeel nummer | V236BJ1-P01 Rev.CB |
| Merk | Innolux |
| Maat | 23.6 |
| Sollicitatie | TV Sets |
| Oplossing | 1366×768 |
| Samenstelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 3000:1 |
| Kleuren | 16.7M |
| Tegenlicht | No |
| Koppel | LVDS |
| fabrikant | Innolux |
| modelnaam | V236BJ1-P01 Rev.CB |
| scherm grootte | 23.6 inch |
| scherm type | CELL , a-Si TFT-LCD |
| pixel nummer | 1366(RGB)×768 (WXGA) 66PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 521.471 × 293.184 (H×V) |
| overzicht (mm) | 535.06 × 307.34 × 1.32 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Antiglare (Haze 1%) |
| luminantie | 0 cd/m² |
| contrast ratio | 3000 : 1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| antwoord | 8.5 (Typ.)(G to G) ms |
| goed zicht op | Symmetry |
| werk modus | MVA, Normally Black, Transmissive |
| glas dikte | 0.50+0.50 mm |
| doorlaatbaarheid | 5.6% (Typ.)(with Polarizer) |
| kleuren diepte | 16.7M 69% NTSC |
| tegenlicht | No B/L |
| massa | 510g (Typ.) |
| gebruikt voor | TV Sets |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| driver ic lijst | Built-in COF 2 source chips |
| signaal type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| spanningsvoorziening | 12.0V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
