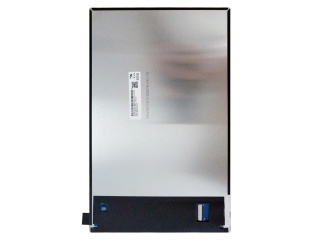

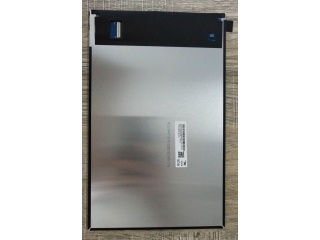

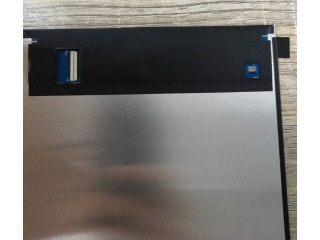

| Onderdeel nummer | TV101WUM-NL1 |
| Merk | BOE |
| Maat | 10.1 |
| Sollicitatie | Pad & Tablet |
| Oplossing | 1200×1920 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | 8S4P |
| Koppel | MIPI |
| fabrikant | BOE |
| modelnaam | TV101WUM-NL1 |
| scherm grootte | 10.1 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1200(RGB)×1920 (WUXGA) 225PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 135.36 × 216.576 (H×V) |
| overzicht (mm) | 142.96 × 227.926 × 3.8 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Anti Fingerprint + Clear, Hard coating |
| luminantie | 400 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| antwoord | 30 (Typ.)(Tr+Td) ms |
| goed zicht op | Symmetry |
| werk modus | HADS, Normally Black, Transmissive |
| kleuren diepte | 16.7M 98% sRGB |
| tegenlicht | 8S4P WLED , 15K hours , No Driver |
| massa | 105g (Typ.) |
| gebruikt voor | Pad & Tablet |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | MIPI (4 data lanes) , Connector 45 pins |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| B101EAN01.2 | AUO | 10.1 | 1280×800 |
| B101EW01 V0 | AUO | 10.1 | 1280×720 |
| LP101WH4-SLA3 | LG Display | 10.1 | 1366×768 |
| LP101WSA-TLA1 | LG Display | 10.1 | 1024×600 |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-104 | Samsung | 10.1 | 1280×800 |
| LTN101NT06-W01 | Samsung | 10.1 | 1024×600 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
