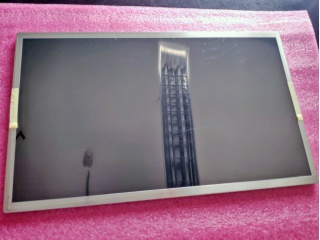

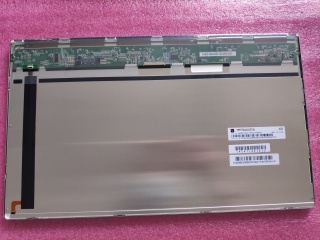

| Onderdeel nummer | TM156VDSG16 |
| Merk | TIANMA |
| Maat | 15.6 |
| Sollicitatie | Industrial |
| Oplossing | 1920×1080 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | |
| fabrikant | TIANMA |
| scherm grootte | 15.6 inch |
| pixel nummer | 1920(RGB)×1080 (FHD) 141PPI |
| actief gebied (mm) | 344.16 × 193.59 (H×V) |
| bezel gebied (mm) | 347.55 × 196.75 (H×V) |
| luminantie | 400 (Typ.)(cd/m²) |
| kijk hoek | 88/88/88/88 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| kleuren diepte | 16.7M 72% NTSC |
| massa | 610g (Typ.) |
| vernieuwingsfrequentie | 60Hz |
| modelnaam | TM156VDSG16 |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 363.8 × 215.9 × 6.8 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| werk modus | SFT, Normally Black, Transmissive |
| antwoord | 25 (Typ.)(Tr+Td) ms |
| tegenlicht | WLED , 50K hours , With LED Driver |
| gebruikt voor | Industrial |
| touch screen | Without |
| B156RW01 V1 | AUO | 15.6 | 1600×900 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| B156XW01 V1 | AUO | 15.6 | 1366×768 |
| G156HTN01.0 | AUO | 15.6 | 1920×1080 |
| LP156WD1-TPB1 | LG Display | 15.6 | 1600×900 |
| LP156WH2-TPB1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT01-V01 | Samsung | 15.6 | 1366×768 |
| LTN156AT17-D02 | Samsung | 15.6 | 1366×768 |
| M156MWR1 R0 | IVO | 15.6 | 1366×768 |
