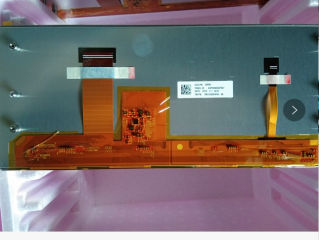

| Onderdeel nummer | TM123XDHP90 |
| Merk | TIANMA |
| Maat | 12.3 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 1920×720 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | 10S4P |
| Koppel | LVDS |
| paneel merk | TIANMA |
| paneelmodel | TM123XDHP90 |
| paneel grootte | 12.3" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 1920(RGB)×720, 166PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 292.32(W)×109.62(H) mm |
| omlijsting openen | - |
| omtrek grootte | 311(W)×130(H) ×15.7(D) mm |
| oppervlak | Antiglare (Haze 28%) |
| helderheid | 1000 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| kijk hoek | - |
| weergavemodus | SFT, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kleuren weergeven | 16.7M 98% sRGB |
| soort lamp | 10S4P WLED , 10K hours , Without Driver |
| frequentie | 60Hz |
| touch screen | Without |
| paneel gewicht | 490g (Typ.) |
| sollicitatie | Industrial Outdoor High Brightness Automotive Display |
| signaal interface | LVDS (2 ch, 8-bit) , 50 pins FPC |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
