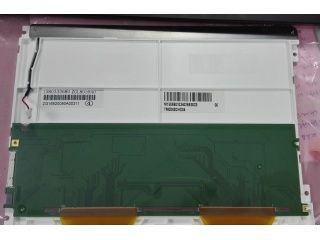

| Onderdeel nummer | TM084SDHG04 |
| Merk | TIANMA |
| Maat | 8.4 |
| Sollicitatie | Industrial |
| Oplossing | 800×600 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | 8S3P |
| Koppel | LVDS |
| paneel merk | TIANMA |
| paneelmodel | TM084SDHG04 |
| paneel grootte | 8.4" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 800(RGB)×600, SVGA, 119PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 170.4(W)×127.8(H) mm |
| omlijsting openen | 173.0(W)×130.6(H) mm |
| omtrek grootte | 203(W)×143.5(H) ×7.05(D) mm |
| oppervlak | Antiglare |
| helderheid | 350 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) (TM) |
| kijk hoek | 70/70/60/70 (Typ.)(CR≥10) |
| weergavemodus | TN, Normally White, Transmissive |
| beste zicht op | 12 o'clock |
| reactietijd | 20 (Typ.)(Tr+Td) |
| kleuren weergeven | 262K 40% NTSC |
| soort lamp | 8S3P WLED , 30K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | Without |
| paneel gewicht | 240g (Typ.) |
| sollicitatie | Industrial |
| signaal interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
