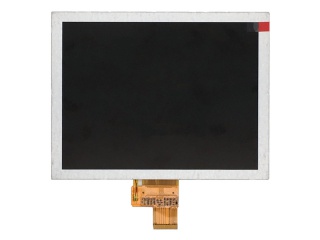

| Onderdeel nummer | TM080TDHG01-42 |
| Merk | TIANMA |
| Maat | 8.0 |
| Sollicitatie | Industrial |
| Oplossing | 1024×768 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | 3S9P |
| Koppel | |
| fabrikant | TIANMA |
| scherm grootte | 8.0 inch |
| pixel nummer | 1024(RGB)×768 (XGA) 160PPI |
| actief gebied (mm) | 162.048 × 121.536 (H×V) |
| bezel gebied (mm) | 164.65 × 124.14 (H×V) |
| luminantie | 400 (Typ.)(cd/m²) |
| kijk hoek | 80/80/80/80 (Typ.)(CR≥10) |
| goed zicht op | 12 o'clock |
| kleuren diepte | 262K/16.7M 50% NTSC |
| massa | 189g |
| vernieuwingsfrequentie | 60Hz |
| modelnaam | TM080TDHG01-42 |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 183 × 141 × 3.7 (H×V×D) |
| behandeling | Clear |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| werk modus | TN, Normally White, Transmissive |
| antwoord | 20 (Typ.)(Tr+Td) ms |
| tegenlicht | 3S9P WLED , 30K hours , No Driver |
| gebruikt voor | Industrial |
| touch screen | Without |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| HSD080IDW1-A00 | HannStar | 8.0 | 800×480 |
| L5F30614T23 | SANYO | 8.0 | 800×480 |
| L5F30614T64 | SANYO | 8.0 | 800×480 |
| LM64C219 | SHARP | 8.0 | 640×480 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| N080XCG-L21 | Innolux | 8.0 | 1024×768 |
| P080KDZ-3Z1 | Innolux | 8.0 | 1200×1920 |
| TM080TDHG01 | Tianma | 8.0 | 1024×768 |
