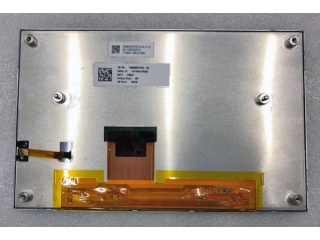

| Onderdeel nummer | TM080RDHP07 |
| Merk | TIANMA |
| Maat | 8.0 |
| Sollicitatie | Automotive Display |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | Parallel |
| merk | TIANMA |
| diagonale maat | 8.0 inch |
| pixel formaat | 800(RGB)×480 [WVGA] 116PPI |
| actief gebied | 174(H)×104.4(V) mm |
| bezel gebied | 177(H)×107.4(V) mm |
| luminantie | 600 cd/m² (Typ.) |
| richting bekijken | Symmetry |
| kijk hoek | 88/88/88/88 (Typ.)(CR≥10) |
| ondersteunende kleur | 16.7M 71% NTSC |
| gewicht | TBD |
| frame rate | 60Hz |
| interface-type | Parallel RGB (1 ch, 8-bit) , 60 pins FPC |
| stroomvoorziening | 3.3/6.0/-6.0/17/-8V (Typ.)(VCC/VDDP/VDDN/VGH/VGL) |
| omgeving | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| model | TM080RDHP07 |
| type | a-Si TFT-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 190.4(H)×120.7(V) ×16.1(D) mm |
| behandeling | Antiglare |
| contrast ratio | 1000:1 (Typ.) (TM) |
| reactietijd | 50 (Max.)(Tr+Td) |
| bedrijfsmodus | SFT, Normally Black, Transmissive |
| lichtbron | WLED [8S2P] , 20K hours , W/O Driver |
| ontworpen voor | Automotive Display |
| aanraakpaneel | Without |
