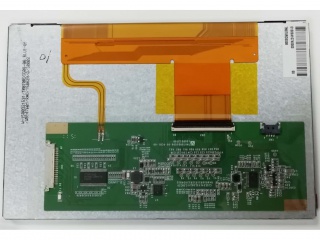

| Onderdeel nummer | TM070RDSG08 |
| Merk | TIANMA |
| Maat | 7.0 |
| Sollicitatie | Industrial |
| Oplossing | 800×480 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | 10S3P |
| Koppel | LVDS |
| fabrikant | TIANMA |
| scherm grootte | 7.0 inch |
| pixel nummer | 800(RGB)×480 (WVGA) 133PPI |
| actief gebied (mm) | 152.4 × 91.44 (H×V) |
| bezel gebied (mm) | 155.4 × 94.44 (H×V) |
| luminantie | 500 cd/m² (Typ.) |
| kijk hoek | 70/70/70/60 (Typ.)(CR≥10) |
| goed zicht op | - |
| kleuren diepte | 262K/16.7M 70% NTSC |
| massa | 176g (Typ.) |
| vernieuwingsfrequentie | 60Hz |
| signaal type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| modelnaam | TM070RDSG08 |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 166.4 × 107.2 × 8.5 (H×V×D) |
| behandeling | Antiglare |
| contrast ratio | 500 : 1 (Typ.) (TM) |
| antwoord | 25 (Typ.)(Tr+Td) ms |
| werk modus | TN, Normally White, Transmissive |
| tegenlicht | 10S3P WLED , 50K hours , With LED Driver |
| gebruikt voor | Industrial |
| touch screen | Without |
