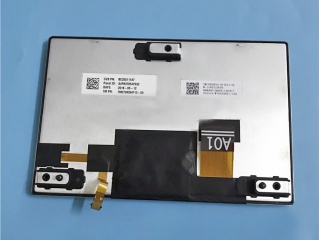

| Onderdeel nummer | TM070RDHP10-00 |
| Merk | TIANMA |
| Maat | 7.0 |
| Sollicitatie | Automotive Display |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | Parallel |
| merk | TIANMA |
| model | TM070RDHP10-00 |
| diagonale maat | 7.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×480 [WVGA] 133PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 152.4(H)×91.44(V) mm |
| omtrek afm. | 165.1(H)×108.44(V) ×13(D) mm |
| bezel gebied | 155.4(H)×94.44(V) mm |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 1000 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 35 (Max.)(Tr+Td) |
| kijk hoek | 88/88/88/88 (Typ.)(CR≥10) |
| bedrijfsmodus | SFT, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 71% NTSC |
| lichtbron | WLED [8S2P] , 10K hours , W/O Driver |
| gewicht | 180g (Max.) |
| ontworpen voor | Automotive Display |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | Parallel RGB (1 ch, 6/8-bit) , 40 pins FPC |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -45 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
