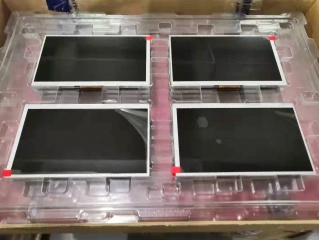

| Onderdeel nummer | TM070RDHG34 |
| Merk | TIANMA |
| Maat | 7.0 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 800×480 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | 3S8P |
| Koppel | |
| fabrikant | TIANMA |
| modelnaam | TM070RDHG34 |
| scherm grootte | 7.0 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 800(RGB)×480 (WVGA) 134PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 154.08 × 85.92 (H×V) |
| overzicht (mm) | 164.9 × 100 × 6 (H×V×D) |
| bezel gebied (mm) | 157.08 × 89.39 (H×V) |
| behandeling | Antiglare |
| luminantie | 1000 cd/m² (Typ.) |
| contrast ratio | 800 : 1 (Typ.) (TM) |
| kijk hoek | 70/70/60/70 (Typ.)(CR≥10) |
| antwoord | 25 (Typ.)(Tr+Td) ms |
| goed zicht op | 6 o'clock |
| werk modus | TN, Normally White, Transmissive |
| kleuren diepte | 16.7M 50% NTSC |
| tegenlicht | 3S8P WLED , 50K hours , No Driver |
| massa | TBD |
| gebruikt voor | Industrial Outdoor High Brightness Automotive Display |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
