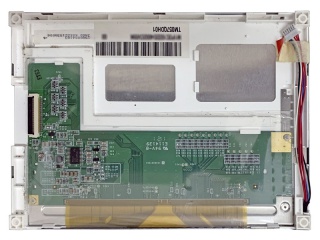

| Onderdeel nummer | TM057KDH01-41 |
| Merk | TIANMA |
| Maat | 5.7 |
| Sollicitatie | Industrial |
| Oplossing | 320×240 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | 5S3P |
| Koppel | Parallel |
| paneel merk | TIANMA |
| paneelmodel | TM057KDH01-41 |
| paneel grootte | 5.7" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 320(RGB)×240, QVGA, 70PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 115.2(W)×86.4(H) mm |
| omlijsting openen | 118.2(W)×89.4(H) mm |
| omtrek grootte | 144(W)×104.6(H) ×12.8(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 400 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) (TM) |
| kijk hoek | 70/70/70/60 (Typ.)(CR≥10) |
| weergavemodus | TN, Normally White, Transmissive |
| beste zicht op | 12 o'clock |
| reactietijd | 20 (Typ.)(Tr+Td) |
| kleuren weergeven | 262K 50% NTSC |
| soort lamp | 5S3P WLED , 50K hours , Without Driver |
| frequentie | 60Hz |
| touch screen | Without |
| paneel gewicht | 160g (Typ.) |
| sollicitatie | Industrial |
| signaal interface | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
