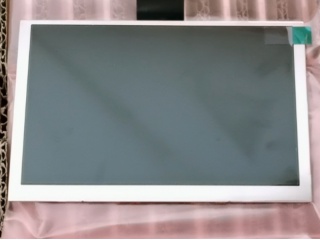

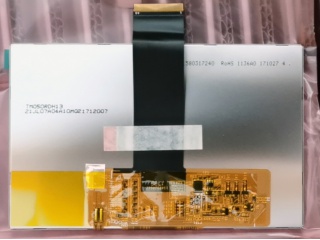

| Onderdeel nummer | TM050RDH13 |
| Merk | TIANMA |
| Maat | 5.0 |
| Sollicitatie | Automotive Display |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | |
| paneel merk | TIANMA |
| paneel grootte | 5.0" |
| oplossing | 800(RGB)×480, WVGA, 188PPI |
| weergavegebied | 108(W)×64.8(H) mm |
| helderheid | - |
| kijk hoek | - |
| beste zicht op | - |
| kleuren weergeven | 16.7M 50% NTSC |
| frequentie | 60Hz |
| gewicht | - |
| paneelmodel | TM050RDH13 |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| contrast ratio | 500:1 (Typ.) (TM) |
| weergavemodus | TN, Normally White, Transmissive |
| reactietijd | 20 (Typ.)(Tr+Td) |
| soort lamp | WLED |
| touch screen | Without |
| sollicitatie | Automotive Display |
