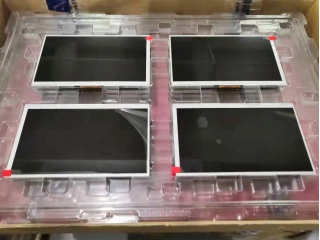

| Onderdeel nummer | TM050RDH03-00 |
| Merk | TIANMA |
| Maat | 5.0 |
| Sollicitatie | Industrial Portable |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 600:1 |
| Kleuren | 16.7M |
| Tegenlicht | 7S2P |
| Koppel | Parallel |
| paneel merk | TIANMA |
| paneelmodel | TM050RDH03-00 0 Compatible |
| paneel grootte | 5.0" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 800(RGB)×480, WVGA, 188PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 108(W)×64.8(H) mm |
| omlijsting openen | 111.1(W)×67.9(H) mm |
| omtrek grootte | 120.7(W)×75.8(H) ×3.1(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) (TM) |
| kijk hoek | 70/70/50/70 (Typ.)(CR≥10) |
| weergavemodus | TN, Normally White, Transmissive |
| beste zicht op | 12 o'clock |
| reactietijd | 20 (Typ.)(Tr+Td) |
| kleuren weergeven | 16.7M 50% NTSC |
| soort lamp | 7S2P WLED , 20K hours , Without Driver |
| frequentie | 60Hz |
| touch screen | Without |
| paneel gewicht | TBD |
| sollicitatie | Industrial Portable Navigation MID UMPC MP3 PMP |
| signaal interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
