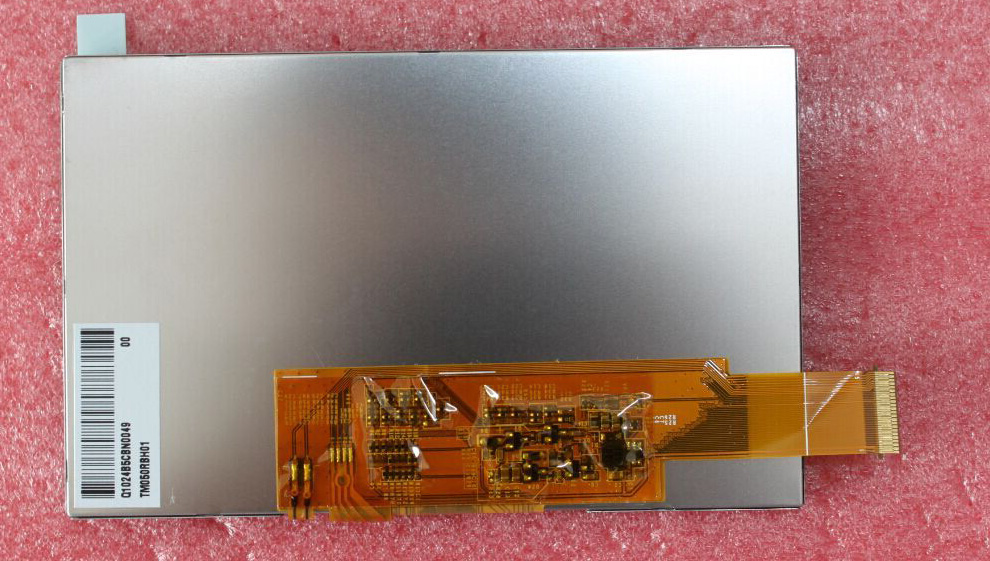

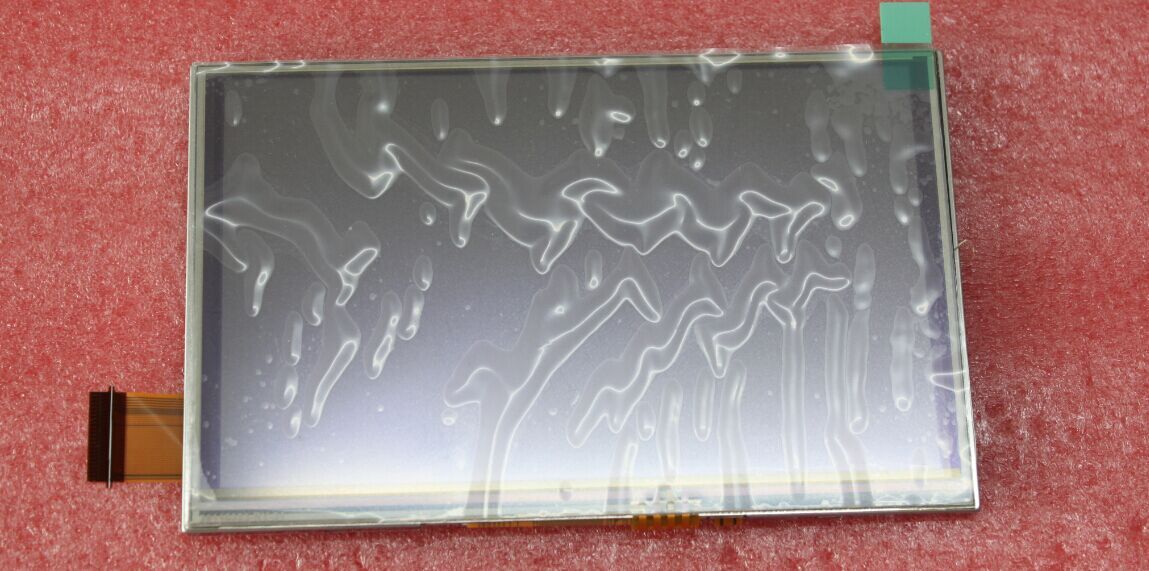

| Onderdeel nummer | TM050RBH01-00 |
| Merk | TIANMA |
| Maat | 5.0 |
| Sollicitatie | Industrial Portable |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 450:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | Parallel |
| merk | TIANMA |
| model | TM050RBH01-00 |
| diagonale maat | 5.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×480 [WVGA] 188PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 108(H)×64.8(V) mm |
| omtrek afm. | 120.7(H)×75.8(V) ×6.3(D) mm |
| bezel gebied | - |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 300 cd/m² (Typ.) |
| contrast ratio | 450:1 (Typ.) (TM) |
| richting bekijken | 12 o'clock |
| reactietijd | 20 (Typ.)(Tr+Td) |
| kijk hoek | 70/70/50/70 (Typ.)(CR≥10) |
| bedrijfsmodus | TN, Normally White, Transmissive |
| ondersteunende kleur | 16.7M 50% NTSC |
| lichtbron | WLED [6S3P] , 20K hours , W/O Driver |
| gewicht | 76.3g |
| ontworpen voor | Industrial Portable Navigation MID UMPC MP3 PMP |
| frame rate | 60Hz |
| aanraakpaneel | 4-wire Resistive Touch |
| interface-type | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
