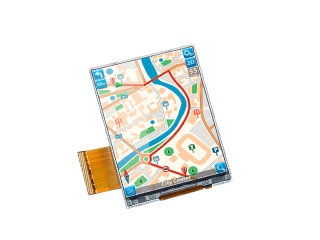

| Onderdeel nummer | TM035HDHP13 |
| Merk | TIANMA |
| Maat | 3.5 |
| Sollicitatie | Outdoor High Brightn |
| Oplossing | 240×320 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | |
| paneel merk | TIANMA |
| paneel grootte | 3.5" |
| oplossing | 240(RGB)×320, QVGA, 114PPI |
| weergavegebied | 53.28(W)×71.04(H) mm |
| omtrek grootte | 64(W)×85(H) mm |
| helderheid | 1000 cd/m² (Typ.) |
| kijk hoek | 88/88/88/88 (Typ.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 262K 60% NTSC |
| gewicht | - |
| paneelmodel | TM035HDHP13 |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | Antiglare |
| contrast ratio | 800:1 (Typ.) (TM) |
| weergavemodus | SFT, Normally Black, Transmissive |
| reactietijd | - |
| soort lamp | WLED , 20K hours |
| sollicitatie | Outdoor High Brightness Handheld & PDA |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| TM035KBH02 | Tianma | 3.5 | 320×240 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| TM035KDH05 | Tianma | 3.5 | 320×240 |
| TM035KDH08 | Tianma | 3.5 | 320×240 |
| TM035NDH04 | Tianma | 3.5 | 272×480 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| TM035PDZ15 | Tianma | 3.5 | 320×480 |
