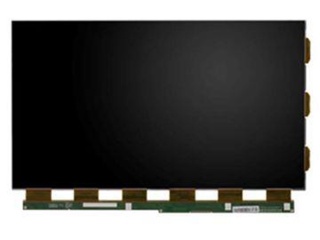

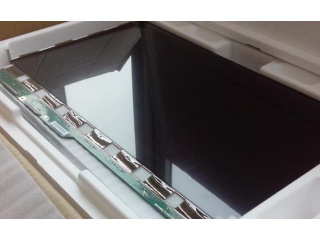

| Onderdeel nummer | T215HVN05.0 CELL |
| Merk | AUO |
| Maat | 21.5 |
| Sollicitatie | Desktop Monitor TV S |
| Oplossing | 1920×1080 |
| Samenstelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 3000:1 |
| Kleuren | 16.7M |
| Tegenlicht | No |
| Koppel | LVDS |
| fabrikant | AUO |
| scherm grootte | 21.5 inch |
| pixel nummer | 1920(RGB)×1080 (FHD) 102PPI |
| actief gebied (mm) | 476.064 × 267.786 (H×V) |
| bezel gebied (mm) | - |
| luminantie | 0 cd/m² |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| glas dikte | 0.50+0.50 mm |
| kleuren diepte | 16.7M 76% NTSC |
| massa | 415g (Typ.) |
| vernieuwingsfrequentie | 60Hz |
| driver ic lijst | Built-in COF 6 source chips |
| signaal type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| spanningsvoorziening | 5.0V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnaam | T215HVN05.0 CELL |
| scherm type | CELL , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 483.864 × 278.386 × 1.41 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| contrast ratio | 3000 : 1 (Typ.) (TM) |
| antwoord | 13/5 (Typ.)(Tr/Td); 28 (Typ.)(G to G) ms |
| werk modus | VA, Normally Black, Transmissive |
| doorlaatbaarheid | 3.6% (Typ.)(with Polarizer) |
| tegenlicht | No B/L |
| gebruikt voor | Desktop Monitor TV Sets |
| touch screen | Without |
