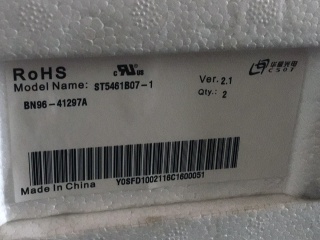

| Onderdeel nummer | ST5461B07-1 |
| Merk | CSOT |
| Maat | 55 |
| Sollicitatie | TV Sets |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 4000:1 |
| Kleuren | 16.7M |
| Tegenlicht | No |
| Koppel | |
| paneel merk | CSOT |
| paneel grootte | 55" |
| oplossing | 1920(RGB)×1080, FHD, 40PPI |
| weergavegebied | 1209.6(W)×680.4(H) mm |
| omtrek grootte | 1219.6(W)×692.9(H) ×1.32(D) mm |
| helderheid | 0 cd/m² |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste zicht op | Symmetry |
| glas diepte | 0.50+0.50 mm |
| kleuren weergeven | 16.7M 72% NTSC |
| frequentie | 60Hz |
| gewicht | 2.65Kgs (Typ.) |
| paneelmodel | ST5461B07-1 |
| paneel type | a-Si TFT-LCD , CELL |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | Antiglare (Haze 2%), Hard coating (3H) |
| contrast ratio | 4000:1 (Typ.) (TM) |
| weergavemodus | HVA, Normally Black, Transmissive |
| reactietijd | 6.5 (Typ.)(G to G) |
| doorlaatbaarheid | 6.5% (Typ.)(with Polarizer) |
| soort lamp | No B/L |
| touch screen | Without |
| sollicitatie | TV Sets |
| LC550DUS-SCM3 | LG Display | 55 | 1920×1080 |
| LC550EGE-DHM7 | LG Display | 55 | 3840×2160 |
| LTA550HW03-002 | Samsung | 55 | 1920×1080 |
| LTF550HF04-A05 | Samsung | 55 | 1920×1080 |
| P546HW03 V0 | AUO | 55 | 1920×1080 |
| ST5461B03-1 | CSOT | 55 | 1920×1080 |
| ST5461B05-1 | CSOT | 55 | 1920×1080 |
| ST5461B05-2 | CSOT | 55 | 1920×1080 |
| ST5461D01-1 | CSOT | 55 | 3840×2160 |
| ST5461D04-2 | CSOT | 55 | 3840×2160 |
