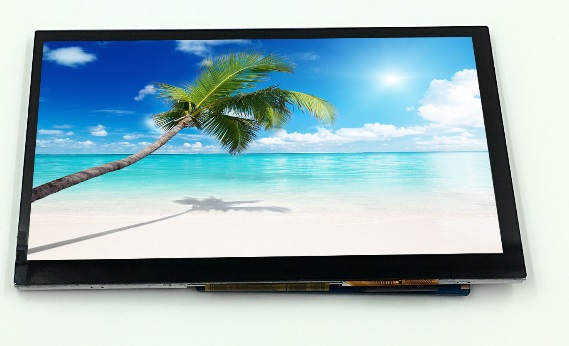

| Onderdeel nummer | S101WS07 |
| Merk | CDTECH |
| Maat | 10.1 |
| Sollicitatie | Industrial |
| Oplossing | 1024×600 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 600:1 |
| Kleuren | 16.7M |
| Tegenlicht | 3S6P |
| Koppel | Parallel |
| fabrikant | CDTECH |
| scherm grootte | 10.1 inch |
| pixel nummer | 1024(RGB)×600 (WSVGA) 117PPI |
| actief gebied (mm) | 222.72 × 125.28 (H×V) |
| bezel gebied (mm) | 226.34 × 128.1 (H×V) |
| luminantie | 200 cd/m² (Typ.) |
| kijk hoek | 65/65/55/65 (Typ.)(CR≥10) |
| goed zicht op | 12 o'clock |
| kleuren diepte | 16.7M |
| massa | TBD |
| vernieuwingsfrequentie | 60Hz |
| signaal type | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| spanningsvoorziening | 3.3/10.85/21/-5.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| max. waarderingen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| modelnaam | S101WS07 |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 235 × 143 × 5.39 (H×V×D) |
| behandeling | - |
| contrast ratio | 600 : 1 (Typ.) (TM) |
| antwoord | 6/20 (Typ.)(Tr/Td) ms |
| werk modus | TN, Normally White, Transmissive |
| tegenlicht | 3S6P WLED , 25K hours , No Driver |
| gebruikt voor | Industrial |
| touch screen | Without |
