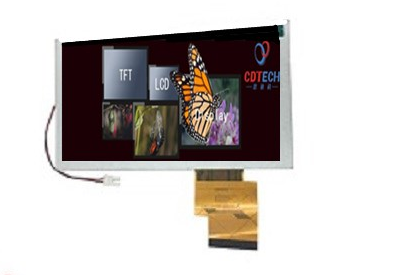

| Onderdeel nummer | S062WV04 |
| Merk | CDTECH |
| Maat | 6.2 |
| Sollicitatie | Industrial Automotiv |
| Oplossing | 800×480 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 600:1 |
| Kleuren | 16.7M |
| Tegenlicht | 3S9P |
| Koppel | |
| fabrikant | CDTECH |
| scherm grootte | 6.2 inch |
| pixel nummer | 800(RGB)×480 (WVGA) 150PPI |
| actief gebied (mm) | 137.52 × 77.232 (H×V) |
| bezel gebied (mm) | 140.7 × 80.4 (H×V) |
| luminantie | 600 (Typ.)(cd/m²) |
| kijk hoek | 65/65/55/65 (Typ.)(CR≥10) |
| goed zicht op | - |
| kleuren diepte | 16.7M |
| massa | TBD |
| vernieuwingsfrequentie | 60Hz |
| modelnaam | S062WV04 |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 155.2 × 88.2 × 3.7 (H×V×D) |
| behandeling | - |
| contrast ratio | 600 : 1 (Typ.) (TM) |
| werk modus | TN, Normally White, Transmissive |
| antwoord | 30/30 (Typ.)(Tr/Td) ms |
| tegenlicht | 3S9P WLED , 25K hours , No Driver |
| gebruikt voor | Industrial Automotive Display |
| touch screen | Without |
| AT062TN12 | Innolux | 6.2 | |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| TM062RDS01 | Tianma | 6.2 | 800×480 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
| TX16D11VM2CCA | KOE | 6.2 | 640×240 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
