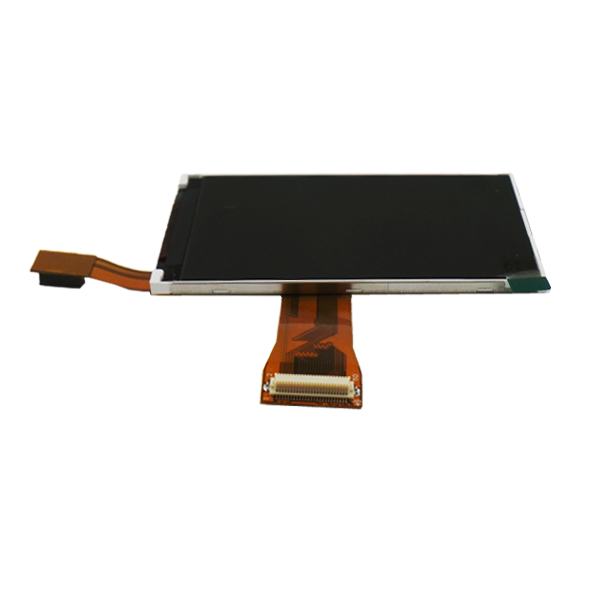

| Onderdeel nummer | S032Q10 |
| Merk | CDTECH |
| Maat | 3.2 |
| Sollicitatie | Handheld & PDA |
| Oplossing | 240×320 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 350:1 |
| Kleuren | 262K |
| Tegenlicht | 1S5P |
| Koppel | CPU |
| paneel merk | CDTECH |
| paneelmodel | S032Q10 |
| paneel grootte | 3.2" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 240(RGB)×320, QVGA, 127PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 47.88(W)×63.84(H) mm |
| omlijsting openen | - |
| omtrek grootte | 55.04(W)×77.7(H) ×2.5(D) mm |
| oppervlak | - |
| helderheid | 270 cd/m² (Typ.) |
| contrast ratio | 350:1 (Typ.) (TM) |
| kijk hoek | 55/65/65/65 (Typ.)(CR≥10) |
| weergavemodus | TN, Normally White, Transmissive |
| beste zicht op | 9 o'clock |
| reactietijd | 20 (Typ.)(Tr+Td) |
| kleuren weergeven | 262K |
| soort lamp | 1S5P WLED , 25K hours , Without Driver |
| frequentie | - |
| touch screen | Without |
| paneel gewicht | TBD |
| sollicitatie | Handheld & PDA |
| signaal interface | CPU , 37 pins FPC |
| ingangsspanning | 3.3/3.3V (Max.)(VCC/IOVCC) |
| omgeving | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
