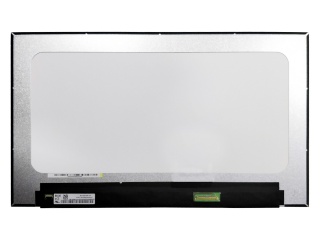

| Onderdeel nummer | NV156FHM-T05 |
| Merk | BOE |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 262K |
| Tegenlicht | 10S4P |
| Koppel | eDP |
| fabrikant | BOE |
| modelnaam | NV156FHM-T05 (BOE07F2) |
| scherm grootte | 15.6 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1920(RGB)×1080 (FHD) 141PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 344.16 × 193.59 (H×V) |
| overzicht (mm) | 350.66 × 205.69 × 5.4 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 220 cd/m² (Typ.) |
| contrast ratio | 800 : 1 (Typ.) (TM) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| antwoord | 30 (Typ.)(Tr+Td) ms |
| goed zicht op | Symmetry |
| werk modus | ADS, Normally Black, Transmissive |
| kleuren diepte | 262K 45% NTSC |
| tegenlicht | 10S4P WLED , 15K hours , With LED Driver |
| omlijnde vorm | Slim (PCBA Bent, T≤3.0mm) |
| gebruikt voor | Laptop |
| vernieuwingsfrequentie | 60Hz |
| touch screen | On-Cell Touch |
| signaal type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 40 pins |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
