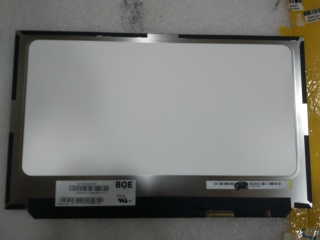

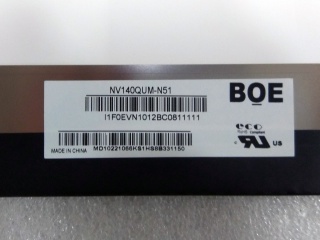

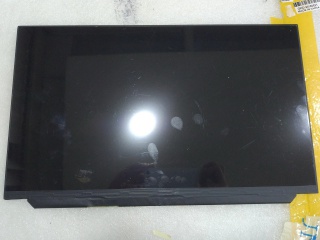

| Onderdeel nummer | NV140QUM-N51 |
| Merk | BOE |
| Maat | 14.0 |
| Sollicitatie | Laptop |
| Oplossing | 3840×2160 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | 10S6P |
| Koppel | eDP |
| paneel merk | BOE |
| paneelmodel | NV140QUM-N51 (BOE06DE) |
| paneel grootte | 14.0" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 3840(RGB)×2160, UHD, 315PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 309.31(W)×173.99(H) mm |
| omlijsting openen | - |
| omtrek grootte | 315.01(W)×194.66(H) ×2.4(D) mm |
| oppervlak | - |
| helderheid | 300 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| weergavemodus | ADS, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 35 (Max.)(Tr+Td) |
| kleuren weergeven | 16.7M 100% sRGB |
| soort lamp | 10S6P WLED , 15K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | Without |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| sollicitatie | Laptop |
| signaal interface | eDP (4 Lanes) , HBR2 (5.4G/lane) , 40 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -20 ~ 65 °C |
