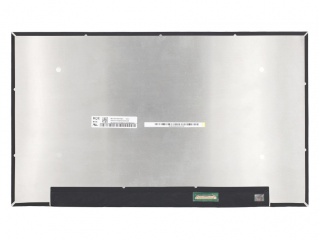

| Onderdeel nummer | NV140FHM-N65 |
| Merk | BOE |
| Maat | 14.0 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | 10S5P |
| Koppel | eDP |
| fabrikant | BOE |
| scherm grootte | 14.0 inch |
| pixel nummer | 1920(RGB)×1080 (FHD) 157PPI |
| actief gebied (mm) | 309.312 × 173.988 (H×V) |
| luminantie | 300 cd/m² (Typ.) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| kleuren diepte | 16.7M 97% sRGB |
| omlijnde vorm | Slim (PCBA Bent, T≤3.0mm) |
| vernieuwingsfrequentie | 60Hz |
| signaal type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnaam | NV140FHM-N65 (BOE0855) |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 315.01 × 185.84 × 4.2 (H×V×D) |
| contrast ratio | 800 : 1 (Typ.) (TM) |
| antwoord | 30 (Typ.)(Tr+Td) ms |
| werk modus | ADS, Normally Black, Transmissive |
| tegenlicht | 10S5P WLED , 15K hours , With LED Driver |
| gebruikt voor | Laptop |
| touch screen | Without |
| B140RTN01.0 | AUO | 14.0 | 1600×900 |
| BT140GW01 V.5 | Innolux | 14.0 | 1366×768 |
| HSD140PHW2-A00 | HannStar | 14.0 | 1366×768 |
| HT140WXB-501 | BOE | 14.0 | 1366×768 |
| LP140WF1-SPJ1 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLA1 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLB1 | LG Display | 14.0 | 1366×768 |
| LTN140AT08-S03 | Samsung | 14.0 | 1366×768 |
| LTN140KT13-B01 | Samsung | 14.0 | 1600×900 |
| NV140FHM-N41 | BOE | 14.0 | 1920×1080 |
