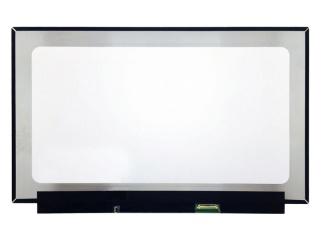

| Onderdeel nummer | NV133FHM-N5A |
| Merk | BOE |
| Maat | 13.3 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | BOE |
| diagonale maat | 13.3 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 166PPI |
| actief gebied | 293.76(H)×165.24(V) mm |
| bezel gebied | - |
| luminantie | 300 cd/m² (Typ.) |
| richting bekijken | Symmetry |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| ondersteunende kleur | 262K 72% NTSC |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| frame rate | 60Hz |
| interface-type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

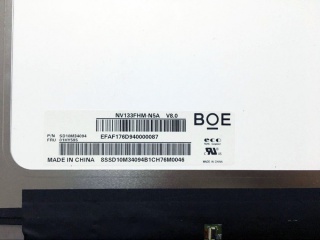

| model | NV133FHM-N5A (BOE0795) |
| type | a-Si TFT-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 300.26(H)×187.45(V) ×2.45(D) mm |
| behandeling | Glare (Haze 0%) |
| contrast ratio | 800:1 (Typ.) (TM) |
| reactietijd | 30 (Typ.)(Tr+Td) |
| bedrijfsmodus | ADS, Normally Black, Transmissive |
| lichtbron | WLED [9S4P] , 15K hours , With LED Driver |
| ontworpen voor | Laptop |
| aanraakpaneel | Without |
