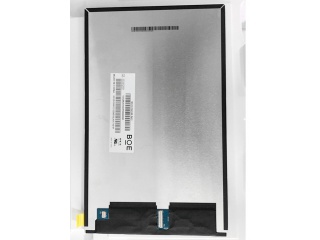

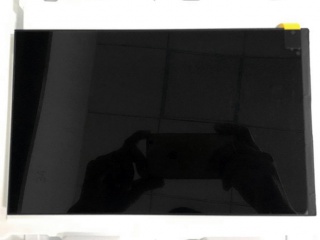

| Onderdeel nummer | NV101WUM-N53 |
| Merk | BOE |
| Maat | 10.1 |
| Sollicitatie | Pad & Tablet |
| Oplossing | 1200×1920 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | |
| merk | BOE |
| model | NV101WUM-N53 |
| diagonale maat | 10.1 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1200(RGB)×1920 [WUXGA] 225PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 135.36(H)×216.576(V) mm |
| omtrek afm. | 141.6(H)×227.406(V) mm |
| bezel gebied | - |
| behandeling | Anti Fingerprint + Clear, Hard coating |
| luminantie | 400 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 30 (Typ.)(Tr+Td) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | HADS, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 74% NTSC |
| lichtbron | WLED [8S4P] , 15K hours , W/O Driver |
| gewicht | 105g (Typ.) |
| ontworpen voor | Pad & Tablet |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
