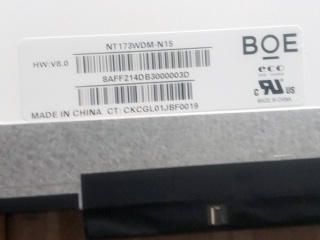

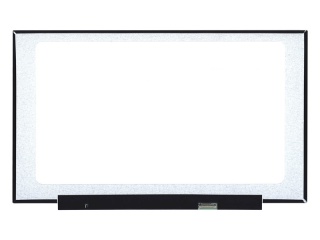

| Onderdeel nummer | NT173WDM-N15 |
| Merk | BOE |
| Maat | 17.3 |
| Sollicitatie | Laptop |
| Oplossing | 1600×900 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | |
| merk | BOE |
| model | NT173WDM-N15 |
| diagonale maat | 17.3 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1600(RGB)×900 [HD+] 106PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 382.08(H)×214.92(V) mm |
| omtrek afm. | 389.88(H)×236.52(V) ×3.5(D) mm |
| bezel gebied | - |
| behandeling | Hard coating (3H) |
| luminantie | - |
| contrast ratio | 500:1 (Typ.) (TM) |
| richting bekijken | 6 o'clock |
| reactietijd | 12 (Typ.)(Tr+Td) |
| kijk hoek | 45/45/15/30 (Min.)(CR≥10) |
| bedrijfsmodus | TN, Normally White, Transmissive |
| ondersteunende kleur | 262K |
| lichtbron | WLED , 15K hours , With LED Driver |
| vorm stijl | Flat (PCBA Flat, T3.4~4.0mm) |
| ontworpen voor | Laptop |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
