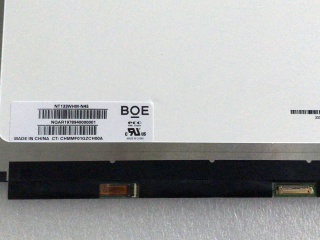

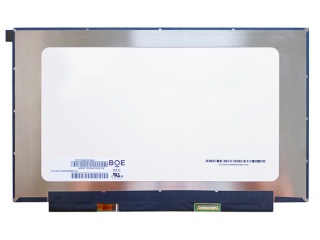

| Onderdeel nummer | NT133WHM-N45 |
| Merk | BOE |
| Maat | 13.3 |
| Sollicitatie | Laptop |
| Oplossing | 1366×768 |
| Samenstelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | 8S4P |
| Koppel | eDP |
| fabrikant | BOE |
| modelnaam | NT133WHM-N45 (BOE07AD) 6 Compatible |
| scherm grootte | 13.3 inch |
| scherm type | LCM, a-Si TFT-LCD |
| pixel nummer | 1366(RGB)×768 (WXGA) 118PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 293.42 × 164.97 (H×V) |
| overzicht (mm) | 300.26 × 187.27 × 3 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 220 cd/m² (Typ.) |
| contrast ratio | 500 : 1 (Typ.) (TM) |
| kijk hoek | 45/45/20/40 (Typ.)(CR≥10) |
| antwoord | 12 (Typ.)(Tr+Td) ms |
| goed zicht op | 6 o'clock |
| werk modus | TN, Normally White, Transmissive |
| kleuren diepte | 262K 45% NTSC |
| tegenlicht | 8S4P WLED , 15K hours , With LED Driver |
| omlijnde vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruikt voor | Laptop |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B133XTN01.2 | AUO | 13.3 | 1366×768 |
| B133XW07 V2 | AUO | 13.3 | 1366×768 |
| LP133WH1-TLA2 | LG Display | 13.3 | 1366×768 |
| LP133WX3-TLA1 | LG Display | 13.3 | 1280×800 |
| LTN133AT03-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT05-S02 | Samsung | 13.3 | 1280×800 |
| LTN133AT07-G01 | Samsung | 13.3 | 1280×800 |
| LTN133AT23-X01 | Samsung | 13.3 | 1366×768 |
| N133BGE-EAB | Innolux | 13.3 | 1366×768 |
| N133I5-L01 | Innolux | 13.3 | 1280×800 |
