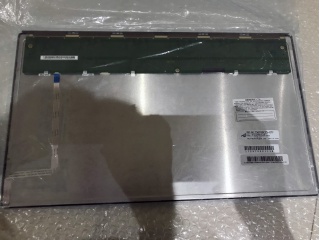

| Onderdeel nummer | NL13676BC25-07F |
| Merk | NLT |
| Maat | 15.6 |
| Sollicitatie | Industrial Outdoor H |
| Oplossing | 1366×768 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 900:1 |
| Kleuren | 262K/16.7M |
| Tegenlicht | 6 |
| Koppel | LVDS |
| paneel merk | NLT |
| paneel grootte | 15.6" |
| oplossing | 1366(RGB)×768, WXGA, 100PPI |
| weergavegebied | 344.232(W)×193.536(H) mm |
| omtrek grootte | 363.8(W)×215.9(H) ×13.15(D) mm |
| helderheid | 1250 cd/m² (Typ.) |
| kijk hoek | 80/80/80/80 (Typ.)(CR≥10) |
| beste zicht op | 6 o'clock |
| kleuren weergeven | 262K/16.7M 60% NTSC |
| frequentie | 60Hz |
| paneel gewicht | 1.07/1.17Kgs (Typ./Max.) |
| signaal interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| paneelmodel | NL13676BC25-07F |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | 347.55(W)×196.85(H) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| contrast ratio | 900:1 (Typ.) (TM) |
| weergavemodus | TN, Normally White, Transmissive |
| reactietijd | 3/15 (Typ.)(Tr/Td) |
| soort lamp | 6 strings WLED , 7K hours , Without Driver |
| touch screen | Without |
| sollicitatie | Industrial Outdoor High Brightness |
