| Onderdeel nummer | NE156QUM-NZ3 |
| Merk | BOE |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 3840×2160 |
| Samenstelling | LCM , Oxide TFT-LC |
| Helderheid | |
| CR | 1200:1 |
| Kleuren | 16.7M |
| Tegenlicht | 12S6P |
| Koppel | eDP |
| fabrikant | BOE |
| scherm grootte | 15.6 inch |
| pixel nummer | 3840(RGB)×2160 (UHD) 283PPI |
| actief gebied (mm) | 344.218 × 193.622 (H×V) |
| bezel gebied (mm) | - |
| luminantie | 400 cd/m² (Typ.) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| kleuren diepte | 16.7M 100% sRGB |
| omlijnde vorm | Slim (PCBA Flat, T≤3.2mm) |
| vernieuwingsfrequentie | 120Hz |

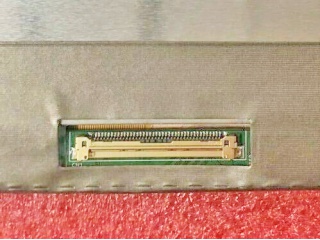

| signaal type | eDP (4 Lanes) , eDP1.4 , HBR3 (8.1G/lane) , 40 pins Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

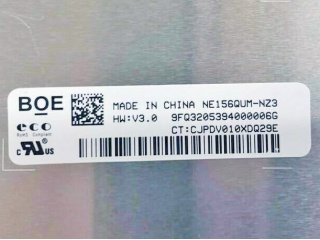

| modelnaam | NE156QUM-NZ3 (BOE08E0) |
| scherm type | LCM , Oxide TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 350.66 × 216.12 × 2.6 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| contrast ratio | 1200 : 1 (Typ.) (TM) |
| antwoord | 10 (Typ.)(Tr+Td) ms |
| werk modus | ADS, Normally Black, Transmissive |
| tegenlicht | 12S6P WLED , 15K hours , With LED Driver |
| gebruikt voor | Laptop |
| touch screen | Without |
| B156HTN04.0 | AUO | 15.6 | 1920×1080 |
| CLAA156WA11A | CPT | 15.6 | 1366×768 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LQ156D1JW04 | SHARP | 15.6 | 3840×2160 |
| LQ156M3LW01 | SHARP | 15.6 | 1920×1080 |
| LTN156AT02-D03 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W02 | Samsung | 15.6 | 1366×768 |
| N156BGE-E42 | Innolux | 15.6 | 1366×768 |
| N156BGE-L11 | Innolux | 15.6 | 1366×768 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
