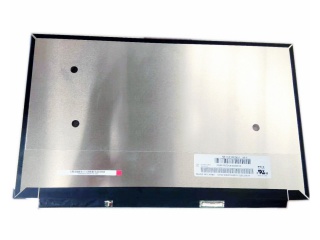

| Onderdeel nummer | NE133FHM-N53 |
| Merk | BOE |
| Maat | 13.3 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | LCM , Oxide TFT-LC |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | - |
| Tegenlicht | - |
| Koppel | eDP |
| fabrikant | BOE |
| modelnaam | NE133FHM-N53 |
| scherm grootte | 13.3 inch |
| scherm type | LCM , Oxide TFT-LCD |
| pixel nummer | 1920(RGB)×1080 (FHD) 166PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 293.76 × 165.24 (H×V) |
| overzicht (mm) | 298.76 × 181.33 × 2.44 (H×V×D) |
| luminantie | - |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| antwoord | - |
| goed zicht op | Symmetry |
| werk modus | ADS, Normally Black, Transmissive |
| kleuren diepte | |
| tegenlicht | |
| omlijnde vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruikt voor | Laptop |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| signaal type | eDP (2 Lanes) Connector |
| spanningsvoorziening | 3.3V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 50 °C |
| B133HAN03.0 | AUO | 13.3 | 1920×1080 |
| B133XW03 V4 | AUO | 13.3 | 1366×768 |
| LP133WP1-TJA1 | LG Display | 13.3 | 1440×900 |
| LP133WX3-TLA6 | LG Display | 13.3 | 1280×800 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LTN133AT07-G01 | Samsung | 13.3 | 1280×800 |
| LTN133AT13-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT25-501 | Samsung | 13.3 | 1366×768 |
| LTN133AT27-102 | Samsung | 13.3 | 1366×768 |
| N133HSE-EB2 | Innolux | 13.3 | 1920×1080 |
