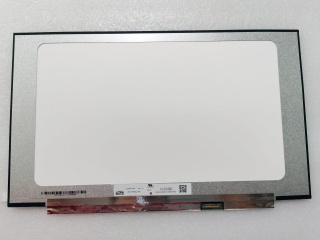

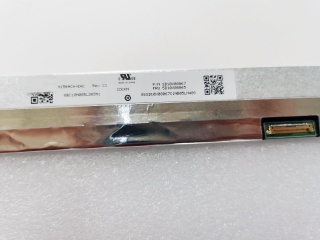

| Onderdeel nummer | N156HCA-EAC |
| Merk | Innolux |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | Innolux |
| paneelmodel | N156HCA-EAC (CMN151E) |
| paneel grootte | 15.6" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 1920(RGB)×1080, FHD, 141PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 344.16(W)×193.59(H) mm |
| omlijsting openen | - |
| omtrek grootte | 350.66(W)×214.75(H) ×3.2(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| weergavemodus | AAS, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 11/9 (Typ.)(Tr/Td) |
| kleuren weergeven | 16.7M 45% NTSC |
| soort lamp | WLED , 15K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | Without |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| sollicitatie | Laptop |
| signaal interface | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
