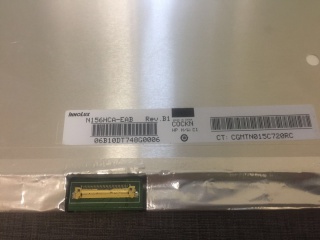

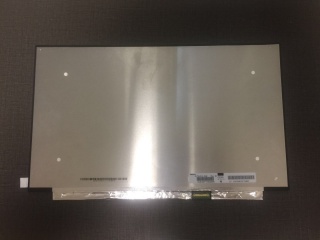

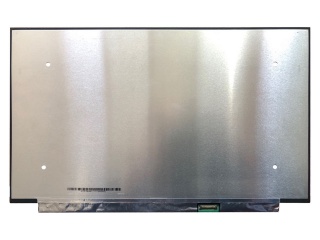

| Onderdeel nummer | N156HCA-EAB |
| Merk | Innolux |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 700:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | Innolux |
| diagonale maat | 15.6 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| actief gebied | 344.16(H)×193.59(V) mm |
| bezel gebied | - |
| luminantie | 250 cd/m² (Typ.) |
| richting bekijken | Symmetry |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| ondersteunende kleur | 16.7M 45% NTSC |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| frame rate | 60Hz |
| interface-type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | N156HCA-EAB (CMN15E7) |
| type | a-Si TFT-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 350.66(H)×216.25(V) ×3.2(D) mm |
| behandeling | Antiglare, Hard coating (3H) |
| contrast ratio | 700:1 (Typ.) (TM) |
| reactietijd | 14/11 (Typ.)(Tr/Td) |
| bedrijfsmodus | AAS, Normally Black, Transmissive |
| lichtbron | WLED , 15K hours , With LED Driver |
| ontworpen voor | Laptop |
| aanraakpaneel | Without |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
| N156O6-L01 | Innolux | 15.6 | 1600×900 |
