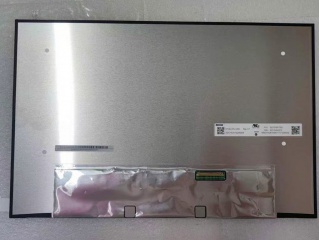

| Onderdeel nummer | N140JCN-GS9 |
| Merk | Innolux |
| Maat | 14.0 |
| Sollicitatie | Laptop |
| Oplossing | 1920×1200 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| merk | Innolux |
| model | N140JCN-GS9 (CMN1417) |
| diagonale maat | 14.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1200 [WUXGA] 161PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 301.594(H)×188.496(V) mm |
| omtrek afm. | 306.59(H)×198.6(V) ×4.5(D) mm |
| bezel gebied | - |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 400 cd/m² (Typ.) |
| contrast ratio | 1500:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 16/14 (Typ.)(Tr/Tf) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| bedrijfsmodus | AAS, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M 100% sRGB |
| lichtbron | WLED , 15K hours , With LED Driver |
| vorm stijl | Slim (PCBA Bent, T≤3.0mm) |
| ontworpen voor | Laptop |
| frame rate | 60Hz |
| aanraakpaneel | On-Cell Touch |

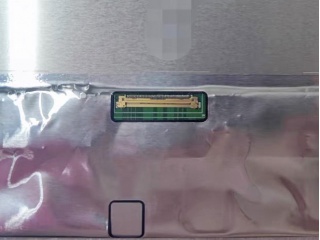

| interface-type | eDP (2 Lanes) , eDP1.4 , 40 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
