| Onderdeel nummer | N140BGA-EA4 Rev.C1 |
| Merk | Innolux |
| Maat | 14.0 |
| Sollicitatie | Laptop |
| Oplossing | 1366×768 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | 10S3P |
| Koppel | |
| paneel merk | Innolux |
| paneel grootte | 14.0" |
| oplossing | 1366(RGB)×768, WXGA, 112PPI |
| weergavegebied | 309.399(W)×173.952(H) mm |
| omtrek grootte | 315.9(W)×205.1(H) ×3(D) mm |
| helderheid | 220 cd/m² (Typ.) |
| kijk hoek | 45/45/20/45 (Typ.)(CR≥10) |
| beste zicht op | 6 o'clock |
| kleuren weergeven | 262K 45% NTSC |
| frequentie | 60Hz |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |

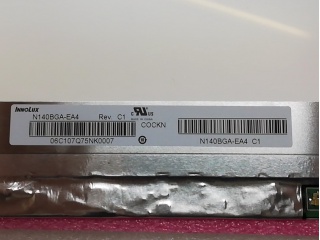

| paneelmodel | N140BGA-EA4 Rev.C1 (CMN14D6) |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | Antiglare, Hard coating (3H) |
| contrast ratio | 500:1 (Typ.) (TM) |
| weergavemodus | TN, Normally White, Transmissive |
| reactietijd | 3/8 (Typ.)(Tr/Td) |
| soort lamp | 10S3P WLED , 15K hours , With LED Driver |
| touch screen | Without |
| sollicitatie | Laptop |
| B140EW01 V1 | AUO | 14.0 | 1280×768 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| CLAA140WA01 | CPT | 14.0 | 1280×768 |
| HB140FH1-401 | BOE | 14.0 | 1920×1080 |
| LP140WH1-TLB3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLE3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLF1 | LG Display | 14.0 | 1366×768 |
| LTN140AT07-L01 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-W01 | Samsung | 14.0 | 1366×768 |
| N140HGE-EAA | Innolux | 14.0 | 1920×1080 |
