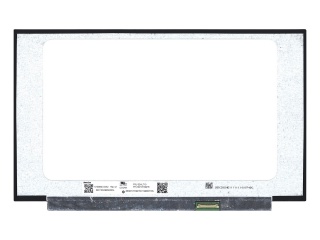

| Onderdeel nummer | N133BGA-EA2 |
| Merk | Innolux |
| Maat | 13.3 |
| Sollicitatie | Laptop |
| Oplossing | 1366×768 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | Innolux |
| paneelmodel | N133BGA-EA2 (CMN1394) 6 Compatible |
| paneel grootte | 13.3" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 1366(RGB)×768, WXGA, 118PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 293.83(W)×165.2(H) mm |
| omlijsting openen | - |
| omtrek grootte | 300.26(W)×187.27(H) ×3(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 220 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) (TM) |
| kijk hoek | 45/45/20/45 (Typ.)(CR≥10) |
| weergavemodus | TN, Normally White, Transmissive |
| beste zicht op | 6 o'clock |
| reactietijd | 3/7 (Typ.)(Tr/Td) |
| kleuren weergeven | 262K 47% NTSC |
| soort lamp | WLED , 15K hours , With LED Driver |
| frequentie | 60Hz |
| touch screen | Without |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| sollicitatie | Laptop |
| signaal interface | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| N133B6-L01 | Innolux | 13.3 | 1366×768 |
| N133B6-L02 | Innolux | 13.3 | 1366×768 |
| N133BGE-E31 | Innolux | 13.3 | 1366×768 |
| N133BGE-E51 | Innolux | 13.3 | 1366×768 |
| N133BGE-EAB | Innolux | 13.3 | 1366×768 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
| N133BGE-L21 | Innolux | 13.3 | 1366×768 |
| N133BGE-L31 | Innolux | 13.3 | 1366×768 |
| N133BGE-L41 | Innolux | 13.3 | 1366×768 |
| N133BGE-LB1 | Innolux | 13.3 | 1366×768 |
