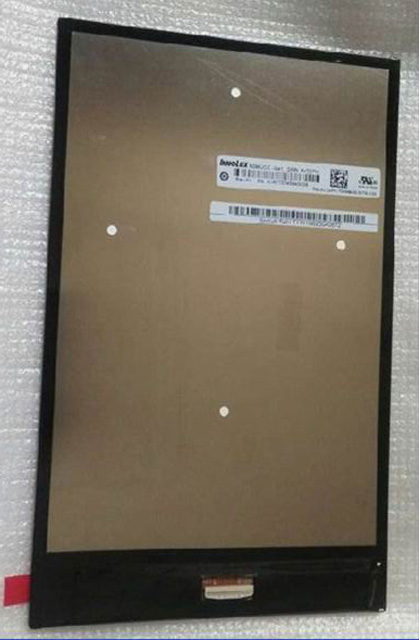

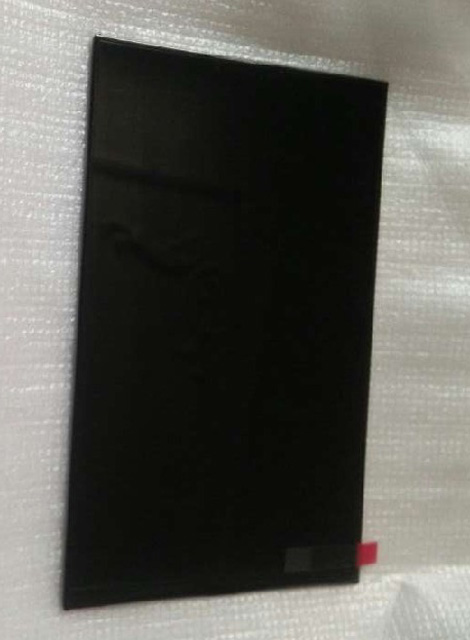

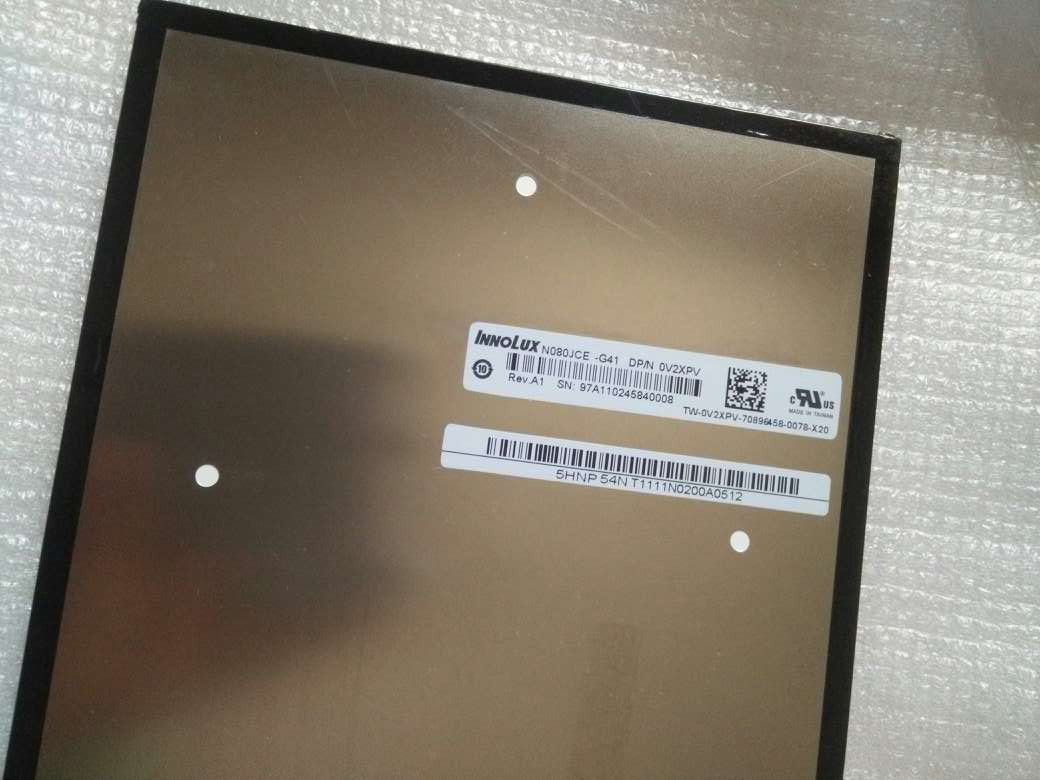

| Onderdeel nummer | N080JCE-G41 Rev.A1 |
| Merk | Innolux |
| Maat | 8.0 |
| Sollicitatie | Pad & Tablet |
| Oplossing | 1200×1920 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | MIPI |
| paneel merk | Innolux |
| paneelmodel | N080JCE-G41 Rev.A1 |
| paneel grootte | 8.0" |
| paneel type | a-Si TFT-LCD, LCM |
| oplossing | 1200(RGB)×1920, WUXGA, 283PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 107.64(W)×172.224(H) mm |
| omlijsting openen | - |
| omtrek grootte | 114.6(W)×184.6(H) ×3.65(D) mm |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 400 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| weergavemodus | AAS, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kleuren weergeven | 16.7M 60% NTSC |
| soort lamp | WLED , 15K hours , Without Driver |
| frequentie | 60Hz |
| touch screen | Without |
| paneel gewicht | 80.0g (Max.) |
| sollicitatie | Pad & Tablet |
| signaal interface | MIPI (4 data lanes) , 45 pins Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| A080SN01 V5 | AUO | 8.0 | 800×600 |
| BP080WX1-100 | BOE | 8.0 | 1280×800 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HJ080IA-01E | Innolux | 8.0 | 1024×768 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LQ080T3AG01 | SHARP | 8.0 | 480×234 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| TV080X0M-NS0 | BOE | 8.0 | 768×1024 |
