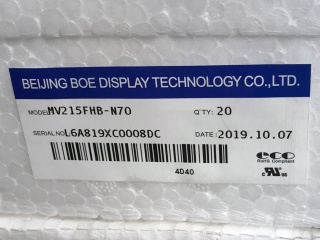

| Onderdeel nummer | MV215FHB-N70 |
| Merk | BOE |
| Maat | 21.5 |
| Sollicitatie | Desktop Monitor |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | No |
| Koppel | LVDS |
| paneel merk | BOE |
| paneel grootte | 21.5" |
| oplossing | 1920(RGB)×1080, FHD, 102PPI |
| weergavegebied | 476.064(W)×267.786(H) mm |
| omtrek grootte | 484.064(W)×278.976(H) ×1.34(D) mm |
| helderheid | 0 cd/m² |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste zicht op | Symmetry |
| glas diepte | 0.50+0.50 mm |
| kleuren weergeven | 16.7M 77% NTSC |
| frequentie | 60Hz |
| bestuurder ic | COF Built-in 6 source chips |
| paneel gewicht | 426g (Typ.) |
| signaal interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| ingangsspanning | 5.0V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneelmodel | MV215FHB-N70 |
| paneel type | a-Si TFT-LCD , CELL |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | - |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| weergavemodus | ADS, Normally Black, Transmissive |
| reactietijd | 14 (Typ.)(G to G) |
| doorlaatbaarheid | 5.1% (Typ.)(with Polarizer) |
| soort lamp | No B/L |
| touch screen | Without |
| sollicitatie | Desktop Monitor |
