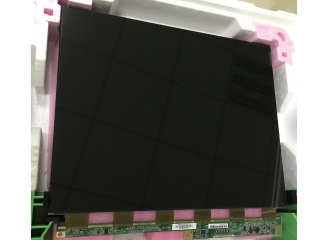

| Onderdeel nummer | MV190E0B-N20 |
| Merk | BOE |
| Maat | 19.0 |
| Sollicitatie | Desktop Monitor |
| Oplossing | 1280×1024 |
| Samenstelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | No |
| Koppel | LVDS |
| fabrikant | BOE |
| scherm grootte | 19.0 inch |
| pixel nummer | 1280(RGB)×1024 (SXGA) 86PPI |
| actief gebied (mm) | 374.784 × 299.827 (H×V) |
| bezel gebied (mm) | - |
| luminantie | 0 cd/m² |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| goed zicht op | Symmetry |
| glas dikte | 0.50+0.50 mm |
| kleuren diepte | 16.7M |
| massa | 361g (Typ.) |
| vernieuwingsfrequentie | 60Hz |
| driver ic lijst | Built-in COF 6 source chips |
| signaal type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| spanningsvoorziening | 5.0V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnaam | MV190E0B-N20 |
| scherm type | CELL , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 388.7 × 308.7 × 1.32 (H×V×D) |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| antwoord | 14 (Typ.)(G to G) ms |
| werk modus | ADS, Normally Black, Transmissive |
| doorlaatbaarheid | 4.5% (Typ.)(with Polarizer) |
| tegenlicht | No B/L |
| gebruikt voor | Desktop Monitor |
| touch screen | Without |
