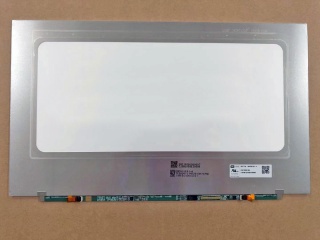

| Onderdeel nummer | MNF601EA1-4 |
| Merk | CSOT |
| Maat | 15.6 |
| Sollicitatie | Laptop |
| Oplossing | 3840×2160 |
| Samenstelling | LTPS TFT-LCD, LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | eDP |
| paneel merk | CSOT |
| paneelmodel | MNF601EA1-4 |
| paneel grootte | 15.6" |
| paneel type | LTPS TFT-LCD, LCM |
| oplossing | 3840(RGB)×2160, UHD, 282PPI |
| pixel formaat | RGB Vertical Stripe |
| weergavegebied | 345.6(W)×194.4(H) mm |
| omlijsting openen | - |
| helderheid | - |
| contrast ratio | 1500:1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| weergavemodus | FFS, Normally Black, Transmissive |
| beste zicht op | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kleuren weergeven | 16.7M |
| soort lamp | WLED , With LED Driver |
| frequentie | 60Hz |
| touch screen | Without |
| vorm stijl | Slim (PCBA Flat, T≤3.2mm) |
| sollicitatie | Laptop |
| signaal interface | eDP (4 Lanes) Connector |
| ingangsspanning | 3.3V (Typ.) |
| omgeving | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
