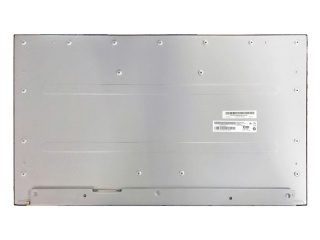

| Onderdeel nummer | M270HAN01.2 |
| Merk | AUO |
| Maat | 27.0 |
| Sollicitatie | Desktop Monitor |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| merk | AUO |
| diagonale maat | 27.0 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 81PPI |
| actief gebied | 597.888(H)×336.312(V) mm |
| bezel gebied | - |
| luminantie | 300 cd/m² (Typ.) |
| richting bekijken | Symmetry |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| ondersteunende kleur | 16.7M 72% NTSC |
| gewicht | 3.14Kgs (Typ.) |
| frame rate | 60Hz |
| interface-type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| stroomvoorziening | 5.0V (Typ.) |
| omgeving | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | M270HAN01.2 |
| type | a-Si TFT-LCD , LCM |
| configuratie | RGB Vertical Stripe |
| omtrek afm. | 607.1(H)×354.1(V) ×13.4(D) mm |
| behandeling | Antiglare, Hard coating (3H) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| reactietijd | 14 (Typ.)(G to G) |
| bedrijfsmodus | AHVA, Normally Black, Transmissive |
| lichtbron | WLED [17S4P] , 30K hours , W/O Driver |
| ontworpen voor | Desktop Monitor |
| aanraakpaneel | Without |
| M270H1-L01 | Innolux | 27.0 | 1920×1080 |
| M270H3-L01 | Innolux | 27.0 | 1920×1080 |
| M270HGE-L10 | Innolux | 27.0 | 1920×1080 |
| M270HTN01.0 | AUO | 27.0 | 1920×1080 |
| M270HVN02.0 | AUO | 27.0 | 1920×1080 |
| M270HVN02.1 | AUO | 27.0 | 1920×1080 |
| M270HW01 V0 | AUO | 27.0 | 1920×1080 |
| M270HW01 V1 | AUO | 27.0 | 1920×1080 |
| M270HW02 V0 | AUO | 27.0 | 1920×1080 |
| M270HW02 V1 | AUO | 27.0 | 1920×1080 |
