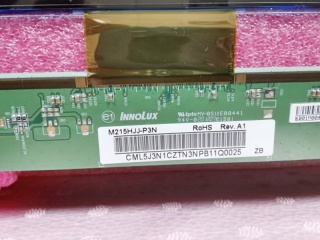

| Onderdeel nummer | M215HJJ-P3N |
| Merk | Innolux |
| Maat | 21.5 |
| Sollicitatie | Desktop Monitor |
| Oplossing | 1920×1080 |
| Samenstelling | CELL, a-Si TFT-LCD |
| Helderheid | |
| CR | 3000:1 |
| Kleuren | 16.7M |
| Tegenlicht | No |
| Koppel | LVDS |
| fabrikant | Innolux |
| modelnaam | M215HJJ-P3N |
| scherm grootte | 21.5 inch |
| scherm type | CELL, a-Si TFT-LCD |
| pixel nummer | 1920(RGB)×1080 (FHD) 102PPI |
| regeling | RGB Vertical Stripe |
| actief gebied (mm) | 476.064 × 267.786 (H×V) |
| overzicht (mm) | 487.456 × 270.18 × 1.29 (H×V×D) |
| bezel gebied (mm) | - |
| behandeling | Antiglare, Hard coating (3H) |
| luminantie | 0 cd/m² |
| contrast ratio | 3000 : 1 (Typ.) (TM) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥20) |
| antwoord | 20/5 (Typ.)(Tr/Td) ms |
| goed zicht op | Symmetry |
| werk modus | MVA, Normally Black, Transmissive |
| glas dikte | 0.50+0.50 mm |
| doorlaatbaarheid | 4.4% (Typ.)(with Polarizer) |
| kleuren diepte | 16.7M |
| tegenlicht | No B/L |
| massa | TBD |
| gebruikt voor | Desktop Monitor |
| vernieuwingsfrequentie | 60Hz |
| touch screen | Without |
| driver ic lijst | Built-in COF 6 source chips |
| signaal type | LVDS (2 ch, 8-bit) , Connector 30 pins |
| spanningsvoorziening | 5.0V (Typ.) |
| max. waarderingen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
