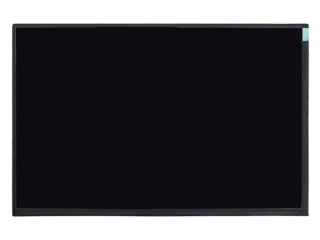

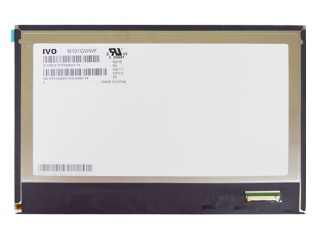

| Onderdeel nummer | M101GWWF R0 |
| Merk | IVO |
| Maat | 10.1 |
| Sollicitatie | Laptop |
| Oplossing | 1280×800 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | LVDS |
| merk | IVO |
| model | M101GWWF R0 |
| diagonale maat | 10.1 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 1280(RGB)×800 [WXGA] 149PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 216.96(H)×135.6(V) mm |
| omtrek afm. | 229.46(H)×149.1(V) ×4.56(D) mm |
| bezel gebied | - |
| behandeling | Glare (Haze 0%), Hard coating (3H) |
| luminantie | 350 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| richting bekijken | Symmetry |
| reactietijd | 25 (Typ.)(Tr+Td) |
| kijk hoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedrijfsmodus | IPS, Normally Black, Transmissive |
| ondersteunende kleur | 16.7M |
| lichtbron | WLED , 25K hours , With LED Driver |
| vorm stijl | Slim (PCBA Bent, T≤3.0mm) |
| ontworpen voor | Laptop |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| stroomvoorziening | 3.3V (Typ.) |
| omgeving | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
