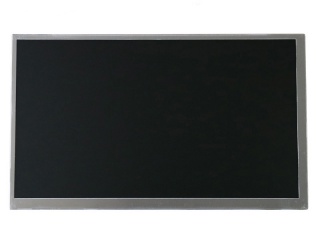

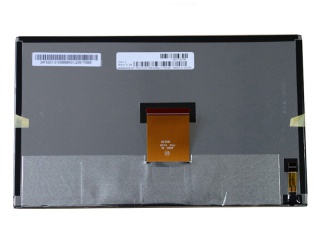

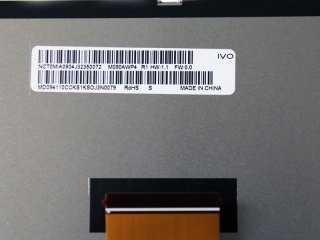

| Onderdeel nummer | M090AWP4 R1 |
| Merk | IVO |
| Maat | 9.0 |
| Sollicitatie | Outdoor High Brightn |
| Oplossing | 800×480 |
| Samenstelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 700:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | Parallel |
| fabrikant | IVO |
| scherm grootte | 9.0 inch |
| pixel nummer | 800(RGB)×480 (WVGA) 104PPI |
| actief gebied (mm) | 198 × 112.08 (H×V) |
| bezel gebied (mm) | 200.2 × 114.28 (H×V) |
| luminantie | 750 cd/m² (Typ.) |
| kijk hoek | 70/70/50/70 (Typ.)(CR≥10) |
| goed zicht op | 6 o'clock |
| kleuren diepte | 262K 70% NTSC |
| massa | - |
| vernieuwingsfrequentie | 60Hz |
| signaal type | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| max. waarderingen | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
| modelnaam | M090AWP4 R1 |
| scherm type | LCM , a-Si TFT-LCD |
| regeling | RGB Vertical Stripe |
| overzicht (mm) | 210.82 × 126.96 × 6.4 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| contrast ratio | 700 : 1 (Typ.) (TM) |
| antwoord | 12 (Typ.)(Tr+Td) ms |
| werk modus | TN, Normally White, Transmissive |
| tegenlicht | WLED , No Driver |
| gebruikt voor | Outdoor High Brightness Automotive Display |
| touch screen | Without |
| AT090TN12 V.3 | Innolux | 9.0 | 800×480 |
| CLAA090NA02CW | CPT | 9.0 | 1024×600 |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| EE090NA-01C | Innolux | 9.0 | 1280×800 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| NL8048BC24-12 | NLT | 9.0 | 800×480 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| T-55562D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| TM090JDH01 | Tianma | 9.0 | 1280×800 |
| TX23D86VM0BAA | KOE | 9.0 | 1280×768 |
