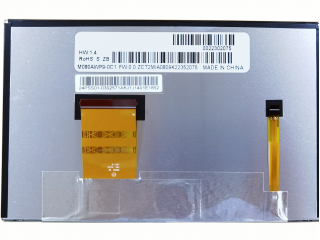

| Onderdeel nummer | M080AWP9 R0 |
| Merk | IVO |
| Maat | 8.0 |
| Sollicitatie | Automotive Display |
| Oplossing | 800×480 |
| Samenstelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 700:1 |
| Kleuren | 262K |
| Tegenlicht | WLED |
| Koppel | Parallel |
| merk | IVO |
| model | M080AWP9 R0 |
| diagonale maat | 8.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×480 [WVGA] 115PPI |
| configuratie | RGB Vertical Stripe |
| actief gebied | 175.2(H)×105.12(V) mm |
| omtrek afm. | 186.5(H)×117.22(V) ×6.65(D) mm |
| bezel gebied | 177.4(H)×107.32(V) mm |
| behandeling | Antiglare |
| luminantie | 750 cd/m² (Typ.) |
| contrast ratio | 700:1 (Typ.) (TM) |
| richting bekijken | - |
| reactietijd | 13 (Typ.)(Tr+Td) |
| kijk hoek | 70/70/50/70 (Typ.)(CR≥10) |
| bedrijfsmodus | TN, Normally White, Transmissive |
| ondersteunende kleur | 262K 70% NTSC |
| lichtbron | WLED [7S3P] , 30K hours , W/O Driver |
| gewicht | 195/215g (Typ./Max.) |
| ontworpen voor | Automotive Display |
| frame rate | 60Hz |
| aanraakpaneel | Without |
| interface-type | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| stroomvoorziening | 3.3/10.6/22/-7.0V (Typ.)(VCC/VDDA/VGH/VGL) |
| omgeving | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
