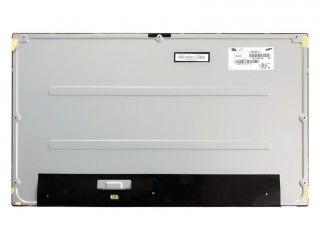

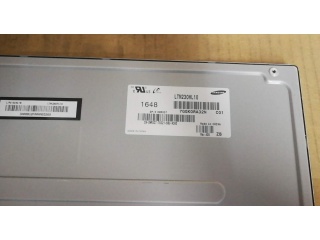

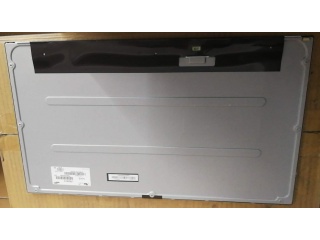

| Onderdeel nummer | LTM230HL10-C01 |
| Merk | SAMSUNG |
| Maat | 23.0 |
| Sollicitatie | Desktop Monitor |
| Oplossing | 1920×1080 |
| Samenstelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleuren | 16.7M |
| Tegenlicht | WLED |
| Koppel | |
| paneel merk | SAMSUNG |
| paneel grootte | 23.0" |
| oplossing | 1920(RGB)×1080, FHD, 95PPI |
| weergavegebied | 509.184(W)×286.416(H) mm |
| omtrek grootte | 522.38(W)×305.62(H) ×12.6(D) mm |
| helderheid | 250 cd/m² (Typ.) |
| kijk hoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste zicht op | Symmetry |
| kleuren weergeven | 16.7M 72% NTSC |
| frequentie | 60Hz |
| gewicht | 2.38Kgs (Max.) |
| paneelmodel | LTM230HL10-C01 |
| paneel type | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| omlijsting openen | 512.384(W)×289.616(H) mm |
| oppervlak | - |
| contrast ratio | 1000:1 (Typ.) (TM) |
| weergavemodus | PLS, Normally Black, Transmissive |
| reactietijd | 14 (Typ.)(G to G) |
| soort lamp | WLED , 40K hours , Without Driver |
| touch screen | Without |
| sollicitatie | Desktop Monitor |
